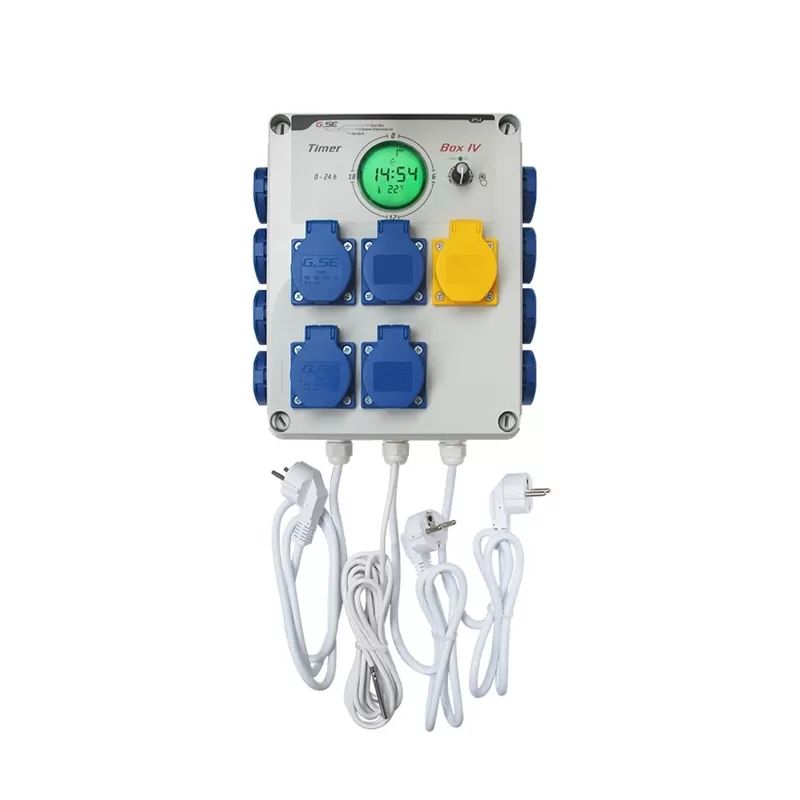

GSE Timer Box IV 12x600 W - Timer box

The timer box is used to switch several inductive loads such as high pressure steam lamps with high inrush current to turn ON and OFF simultaneously. The Timer Box IV has a digital display that is based on a 24-hour mechanical clock . With a left-right control button, it's an easy way to set the clock even faster than a mechanical timer. 48 segments show the current time, programmed duration, day counter and room temperature.

In the event of a power outage, the internal battery will save all your settings and the current time. (Battery life 10 years )

The timer box is ready for use. This reliable switch box comes complete with a sealed IP54 cover (the protection class offers protection against water splashes from all sides), capped plugs and a low voltage temperature sensor, making it ideal for wet rooms.

Characteristics

• 1 pc. 24-hour timer
• Green dimmable display
• Designed for inductive loads
• 0-10V or PWM output
• Temperature display
• Emergency stop temperature monitoring
• Time format - 0-24h or 12 AM/PM
• Temperature format °C or °F
• Starting heating when the light is off
• Sunrise/Sunset - Day counter

Technical specifications

• Body: WxHxD - 200x255x95mm
• Timer Box: WxHxD - 230x300x110mm
• Voltage: 230V / 50Hz
• 3 poles - 3x10A 6'900W
• 3 poles - 3x16A 11'000W CEE16A
• Protection class: IP54
